SR-1 : 50mV / 60mV /
75mV : 1A - 125A
-
SR-2 : 50mV / 60mV /
75mV / 100mV : 150A - 200A
-
SR-3 : 50mV / 60mV /
75mV : 250A - 600A
-
SR-4 : 50mV / 60mV /
75mV : 750A - 1500A
-
SR-5 : 50mV / 60mV /
75mV : 2000A - 2500A
-
SR-6 : 50mV / 60mV /
75mV : 3000A - 6000A
-
by measuring the Voltage
drop across the Resistor with know resistance, the
circuit AC/DC current can be calculated.
-
We support Current Shunt
Resistors for various industrial applications.
Different circuit can have a very different
resistor electrical and mechanical profile requirement.
-
Please feel free to
send
your application details; we might have a solution for
your need.
-
Accept both large and small
quantity orders and
PayPal.
-
Prompt Delivery, within 2
- 9 days!
e-mail us for
pricing.

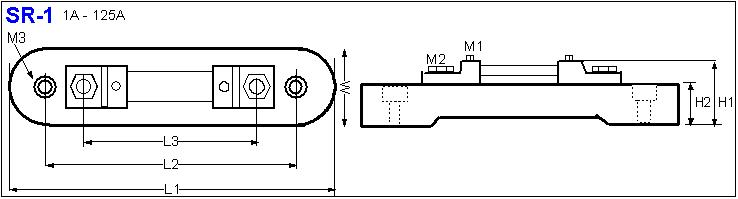

Shunt Resistors SR-1 :
1A - 125A
|
Voltage/ Current |
Dimensions in mm |
Screw size in mm |
Weight
in g |
|
L1 +/-1.0 |
L2 +/-1.0 |
L3 +/-1.0 |
W +/-1.0 |
H1 +/-0.5 |
H2 +/-0.5 |
M1 |
M2 |
M3 |
|
50mV : 1A to 125A |
135 |
110 |
72 |
30 |
24 |
10 |
3 |
6 |
6 |
140 |
|
60mV : 1A to 125A |
150 |
125 |
84 |
30 |
30 |
16 |
3 |
6 |
6 |
140 |
|
75mV : 1A to 125A |
150 |
125 |
88 |
30 |
30 |
16 |
3 |
6 |
6 |
140 |
Resistor sizes might vary
depending on resistance and load current
ratings.

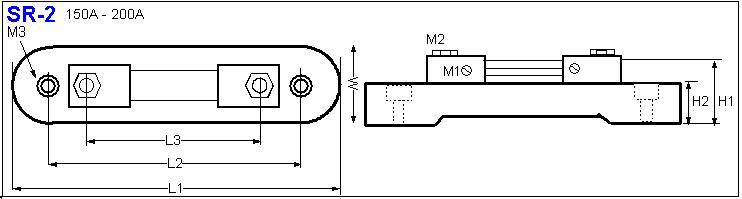

Shunt Resistors SR-2 :
150A -
200A
|
Voltage/ Current |
Dimensions in mm |
Screw size in mm |
Weight
in g |
|
L1 +/-1.0 |
L2 +/-1.0 |
L3 +/-1.0 |
W +/-1.0 |
H1 +/-0.5 |
H2 +/-0.5 |
M1 |
M2 |
M3 |
|
50mV : 150A to 200A |
135 |
110 |
68 |
30 |
25 |
10 |
3 |
8 |
6 |
245 |
|
60mV : 150A to 200A |
150 |
125 |
80 |
30 |
31 |
16 |
3 |
8 |
6 |
260 |
|
75mV : 150A to 200A |
150 |
125 |
84 |
30 |
31 |
16 |
3 |
8 |
6 |
265 |
|
100mV : 150A to 200A |
170 |
150 |
105 |
30 |
31 |
16 |
3 |
8 |
6 |
270 |
Resistor sizes might vary
depending on resistance and load current
ratings.

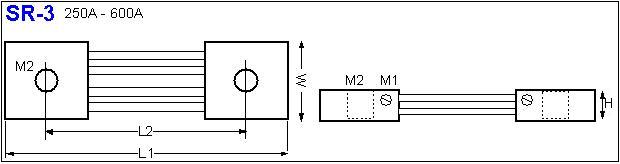

Shunt Resistors SR-3 :
250A -
600A
|
Voltage |
Current |
Dimensions in mm |
Screw size in mm |
Weight in g |
|
L1 +/-1.0 |
L2 +/-1.0 |
W +/-1.0 |
H +/-0.5 |
M1 |
M2 |
|
50mV |
250 - 300A |
117 |
86 |
35 |
18.5 |
4 |
13 |
430 |
|
400A |
117 |
86 |
44 |
18.5 |
4 |
13 |
530 |
|
500A |
117 |
86 |
55 |
18.5 |
4 |
13 |
640 |
|
600A |
123 |
90 |
55 |
21 |
4 |
13 |
830 |
|
60mV |
250 - 300A |
126 |
96 |
35 |
18.5 |
4 |
13 |
430 |
|
400A |
126 |
96 |
44 |
18.5 |
4 |
13 |
530 |
|
500A |
126 |
96 |
55 |
18.5 |
4 |
13 |
650 |
|
600A |
132 |
98 |
55 |
21 |
4 |
13 |
830 |
|
75mV |
250 - 300A |
138 |
107 |
35 |
18.5 |
4 |
13 |
430 |
|
400A |
138 |
107 |
44 |
18.5 |
4 |
13 |
530 |
|
500A |
138 |
107 |
55 |
18.5 |
4 |
13 |
650 |
|
600A |
144 |
111 |
55 |
21 |
4 |
13 |
840 |
Resistor sizes might vary
depending on resistance and load current
ratings.

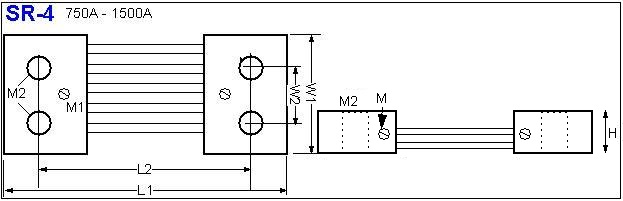

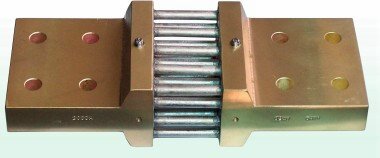

Shunt Resistors SR-4 :
750A -
1500A
|
Voltage |
Current |
Dimensions in mm |
Screw size in mm |
Weight in kg |
|
L1 +/-1.0 |
L2 +/-1.0 |
W1 +/-1.0 |
W2 +/-1.0 |
H +/-0.5 |
M1 |
M2 |
|
50mV |
750A - 800A |
123 |
90 |
70 |
35 |
21 |
4 |
13 |
1.0 |
|
1000A |
163 |
122 |
70 |
35 |
21 |
4 |
13 |
1.5 |
|
1200A |
165 |
124 |
85 |
45 |
21 |
4 |
13 |
1.8 |
|
1500A |
163 |
122 |
100 |
49 |
21 |
4 |
13 |
2.2 |
|
60mV |
750A - 800A |
132 |
98 |
70 |
35 |
21 |
4 |
13 |
1.1 |
|
1000A |
172 |
131 |
70 |
35 |
21 |
4 |
13 |
1.6 |
|
1200A |
174 |
133 |
85 |
45 |
21 |
4 |
13 |
1.9 |
|
1500A |
172 |
131 |
100 |
49 |
21 |
4 |
13 |
2.3 |
|
75mV |
750A - 800A |
144 |
111 |
70 |
35 |
21 |
4 |
13 |
1.1 |
|
1000A |
185 |
145 |
70 |
35 |
21 |
4 |
13 |
1.7 |
|
1200A |
187 |
148 |
85 |
45 |
21 |
4 |
13 |
1.9 |
|
1500A |
185 |
145 |
100 |
49 |
21 |
4 |
13 |
2.4 |
Resistor sizes might vary
depending on resistance and load current
ratings.
Shunt Resistors SR-5 :
2000A -
2500A
|
Voltage |
Current |
Dimensions in mm |
Screw size in mm |
Weight in kg |
|
L1 +/-1.0 |
L2 +/-1.0 |
L3 +/-1.0 |
W1 +/-1.0 |
W2 +/-1.0 |
H +/-0.5 |
M1 |
M2 |
|
50mV |
2000A |
190 |
162 |
37 |
100 |
50 |
39 |
4 |
13 |
4.7 |
|
2500A |
190 |
162 |
37 |
110 |
55 |
39 |
4 |
13 |
5.1 |
|
60mV |
2000A |
199 |
170 |
37 |
100 |
50 |
39 |
4 |
13 |
4.7 |
|
2500A |
199 |
170 |
37 |
110 |
55 |
39 |
4 |
13 |
5.2 |
|
75mV |
2000A |
212 |
184 |
37 |
100 |
50 |
39 |
4 |
13 |
4.8 |
|
2500A |
212 |
184 |
37 |
110 |
55 |
39 |
4 |
13 |
5.3 |
Resistor sizes might vary
depending on resistance and load current
ratings.

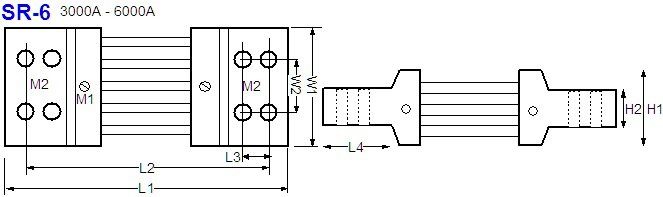

Shunt Resistors SR-6 :
3000A -
6000A
|
Voltage |
Current |
Dimensions in mm |
Screw size in mm |
Weight in kg |
|
L1 +/-1.0 |
L2 +/-1.0 |
L3 +/-1.0 |
L4 +/-1.0 |
W1 +/-1.0 |
W2 +/-1.0 |
H1 +/-0.5 |
H2 +/-0.5 |
M1 |
M2 |
|
50mV |
3000A |
273 |
232 |
45 |
90 |
105 |
55 |
63 |
26 |
4 |
13 |
7.6 |
|
4000A |
273 |
232 |
45 |
90 |
125 |
76 |
63 |
26 |
4 |
13 |
9.0 |
|
5000A |
289 |
294 |
50 |
98 |
126 |
70 |
100 |
37 |
4 |
16.5 |
12.5 |
|
6000A |
289 |
294 |
50 |
98 |
135 |
80 |
100 |
37 |
4 |
16.5 |
14.5 |
|
60mV |
3000A |
281 |
241 |
45 |
90 |
105 |
55 |
63 |
26 |
4 |
13 |
7.7 |
|
4000A |
281 |
241 |
45 |
90 |
125 |
76 |
63 |
26 |
4 |
13 |
9.1 |
|
5000A |
298 |
258 |
50 |
98 |
126 |
70 |
100 |
37 |
4 |
16.5 |
12.5 |
|
6000A |
298 |
258 |
50 |
98 |
135 |
80 |
100 |
37 |
4 |
16.5 |
14.5 |
|
75mV |
3000A |
298 |
255 |
45 |
90 |
105 |
55 |
63 |
26 |
4 |
13 |
7.8 |
|
4000A |
298 |
255 |
45 |
90 |
125 |
76 |
63 |
26 |
4 |
13 |
9.2 |
|
5000A |
313 |
273 |
50 |
98 |
126 |
70 |
100 |
37 |
4 |
16.5 |
12.5 |
|
6000A |
313 |
273 |
50 |
98 |
135 |
80 |
100 |
37 |
4 |
16.5 |
14.5 |
Resistor sizes might vary
depending on resistance and load current
ratings.
