Ceramic Encased Resistors

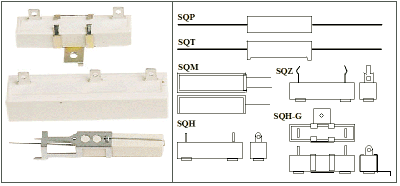

SQP SQT SQM SQH SQH-G and SQZ


  • Ceramic Encased Resistors also knew as Cement Resistors with different packaging and connection options for general applications - DC Voltage, Low Frequency circuits, Snubber Resistor for snubber circuits ( SQH and SQZ )
  • SQP : 2W - 50W ( support up to 100W )
  • SQT : 5 - 25W
  • SQM : 5 - 10W
  • SQH / SQH-G : 10W - 40W
  • SQZ : 5W - 50W
  • SQH and SQZ series resistor with large tab terminals which is good for high pulse current handling. They are suitable as the Snubber Resistor in snubber circuits.
  • excellent stability in high temperature, resistant to humidity and shock with economic price

  • Instant overload capability; low noise figure
  • Non-Flammable Construction
  • Low-Inductance type is available
  • Low and High Resistance value available
  • Precision Resistance Tolerance +/-0.1% +/-0.5% +/-1% +/-5% +/-10%
  • We support Ceramic Encased Resistor for wide variety of industrial applications. Different applications can have very different capacitor electrical and mechanical profile requirements.
  • Prompt Delivery, within 15 – 30 days, depends on order quantity
  • Accept PayPal
  • e-mail us for pricing

SQP : 2W - 50W

Power Watt Dimensions in mm Resistance range ohm
L+/-1.5mm W+/-1mm H+/-3mm D+/-0.05mm SQP MO+SQP
2W 18.0 7.0 7.0 0.65 0.1 - 50 50 - 20k
3W 22.0 8.0 8.0 0.80 0.1 - 50 50 - 33k
5W 22.0 10.0 9.0 0.80 0.1 - 50 50 - 50k
7W 35.0 10.0 9.0 0.80 0.1 - 500 500 - 50k
10W 48.0 10.0 9.0 0.80 0.1 - 500 500 - 50k
15W 48.0 12.0 12.0 0.90 0.5 - 500 500 - 150k
20W / 25W 60 13.0 13.0 0.90 0.5 - 1k 1.1k - 150k
30W 75.0 19.0 19.0 0.90
40W 90.0 19.0 19.0 0.90
50W 90.0 19.0 19.0 0.90

SQT : 5W - 25W

Power Watt Dimensions in mm Resistance range ohm
L+/-1.5mm W+/-1mm H+/-3mm t+/-1mm SQT MO+SQT
5W 22.0 10.0 9.0 1.5 0.1 - 50 50 - 50k
7W 35.0 10.0 9.0 3.0 0.1 - 500 500 - 50k
10W 48.0 10.0 9.0 3.0 0.1 - 500 500 - 50k
20W / 25W 59.0 17.0 14.5 3.5 0.1 - 500 500 - 50k

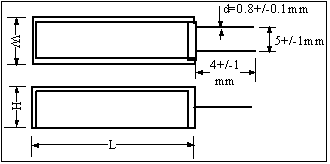

SQM : 5W - 10W

Power Watt Dimensions in mm Resistance range ohm
L+/-1.5mm W+/-1mm H+/-3mm d+/-0.1mm SQM MO+SQM
5W 25.0 13.0 9.0 0.8 0.1 - 50 50 - 50k
7W 39.0 13.0 9.0 0.8 0.1 - 500 500 - 47k
10W 51.0 13.0 9.0 0.8 0.1 - 500 500 - 47k

Ceramic Encased Resistor with large tab Terminals :
S

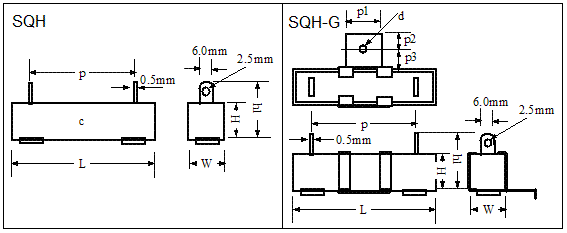

QH / SQH-G : 10W - 40W

Power Watt Resistance range ohm Dimensions in mm
SQH MO+SQH L+/-2 H+/-2 W+/-2 P+/-2 h1+/-2 p1 p2 p3 D
10W 0.5 - 500 500 - 50k 48.0 10.0 10.0 32 21 12 6 8.0 4
15W 1 - 500 500 - 150k 48.0 12.0 12.0 32 21 12 6 8.0 4
20W 1 - 500 500 - 150k 63.5 12.0 12.0 42 24 12 6 8.0 4
30W 1 - 500 - 75.0 19.0 18.0 55 30 17 8 10.0 4
40W 1 - 50 - 90.0 19.0 18.0 68 30 17 8 10.0 4

Ceramic Encased Resistor with large tab Terminals :
S
QZ : 5W - 20W

Power Watt Resistance range ohm Dimensions in mm
SQH MO+SQZ L+/-1 H+/-1 W+/-1 P+/-1 h1 h2 p1
5W 0.1 - 100 100 - 50k 27.0 9.5 9.5 15.0 21 24.0 5.0
7W 0.1 - 500 500 - 50k 35.0 9.5 9.5 22.5 21 24.0 5.0
10W 0.2 - 500 500 - 50k 48.0 9.5 9.5 35.0 21 24.0 5.0
15W 0.5 - 500 500 - 150k 48.0 12.5 12.5 32.5 23 36.5 5.0
20W / 25W 1 - 1k 1.1k - 150k 63.5 15 15 42.0 / 45.0 30 36.5 7.0
30W / 40W 1 - 1k   75.0 19 19 57 34 38 7.0
50W 1 - 1k   90.0 19 19 67 34 60 7.0
