Aluminum Housed Resistors - Chassis AHR / AHRN

  • Aluminum Housed Resistor Applications – Snubbers Resistor for snubber circuits, Braking Resistors, Gate Resistors, Dumping Resistors for Motor Controls, Rush Current protections, Snubber Resistors for snubber circuits (Low Inductance type)
  • AHR : 5W - 1000W
  • Low Inductance AHRN & Precision Resistance Tolerance type are available

  • This series of resistors are made with Nickel Copper or Nickel Chromium resistance wire on ceramic core fitted into anodized Heat sink using high temperature moulding compound.

  • With strong leads which is good for pulse current handling
  • Good for as Snubber Resistors in snubber circuits
  • Good for high pulse / surge power and current dissipation applications. Please state your application conditions.
  • Suitable for industrial machines and equipment
  • Durable and can withstand stronger vibration, moisture and solvent
  • Improved heat conduction and convection design
  • For Low Ohmic Resistors, please tell working Voltage and Duty Cycle. Different Voltage can cause different current. And in turn different resistance wire is needed.

  • Support Low temperature coefficient
  • Support Low Inductance requirement - as medium frequency resistors and snubber resistors
  • Customizable connection and mounting
  • We support Aluminum Housed Resistor for wide variety of industrial applications. Different applications can have a very different resistor electrical and mechanical profile requirement.

  • Accept large, small quantity orders and PayPal.
  • Prompt Delivery, within 10 - 15days, e-mail us for pricing.
  • Aluminum Housed Resistors power range and sizes :

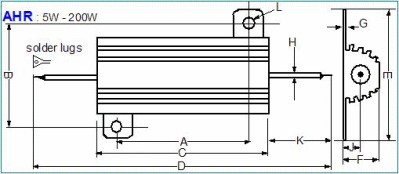

Power Watt Dimensions in mm Weight gram
A B C D E F G H J K L
5W 11.2 12.5 15.2 28.5 16.5 8.0 1.7 1.2 3.8 7.0 2.2 3
10W 14.3 15.8 19.5 35.0 20.3 10.0 1.9 2.0 4.2 8.0 2.2 11
25W 18.3 19.8 27.5 49.0 27.4 14.0 2.2 2.0 6.0 11.0 3.2 18
50W 40.0 21.5 50.0 72.0 29.2 15.5 2.2 2.0 6.0 11.0 3.2 30

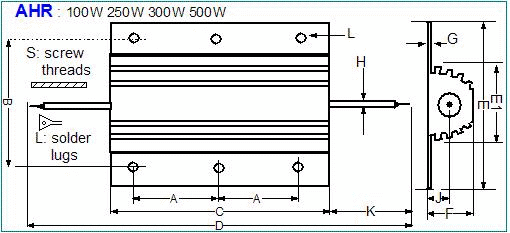

Power Watt Dimensions in mm Weight gram
A B C D E E1 F G H J K L
75W 23.5 38.0 65.5 105 48 27 26 3.3 2.8 11.5 20 4.2 90
100W 36.5 38.0 98.0 138 48 27 26 3.3 2.8 11.5 20 4.2 160
150W 52.0 38.0 135.0 175 48 27 26 3.3 2.8 11.5 20 4.2 240
200W 70.0 38.0 165.0 205 48 27 26 3.3 2.8 11.5 20 4.2 420
250W 45.5 58.0 112.0 152 73 46.5 45 5.0 6.0 21.0 20 5.3 480
300W 51.5 58.0 130.0 170 73 46.5 45 5.0 6.0 21.0 20 5.3 580
500W 87.0 58.0 204.0 244 73 46.5 45 5.0 6.0 21.0 20 5.3 970
10000W 140.0 58.0 300.0 340 73 46.5 45 5.0 6.0 21.0 20 5.3 1400
