Braking Resistors

ASQ, ASQM, ASZ and ASZA




  • ASQ : 60W - 120W

  • ASQM : 60 - 200W ( Low Profile Metal Clad Resistor )

  • ASZ : 40W - 15kW
  • ASZA : Braking Resistor Array with Power up to 20kW
  • ASZA consists of ASZ resistors connect in parallel / series, refer to power resistor photos #17 & 18

  • Support Dynamic Braking Resistor Load Box with power up to 60kW.

  • Internal wire wound resistor is protected by external Aluminum Case from external mechanical force, humidity and dusty

  • Excellent Pulse energy dissipation capacity

  • Suitable for Variable Frequency Drives, industrial machinery and equipment, snubber circuits, heating resistors and braking resistors

  • Durable and can withstand stronger vibration, moisture and solvent

  • Support water resistant and outdoor application requirement, up to IP65

  • Support Brake Resistor with Thermal Switch built-in.

  • Support Precision Tolerance : +/-0.1% +/-0.5% +/-1% +/-5% +/-10%

  • Support long electrical lead wire requirement

  • Support High Pulse Current requirement

  • for Very Low Ohmic Resistors, please tell working Voltage and Loading Time. Different Voltages can cause different loading currents. In turn different raw material is needed to dissipate the load current and heat.

  • Low temperature coefficient, better heat conduction and heat convection

  • Low Inductance version is available - ASQN, ASQMN, ASZN

  • Standard Electrical lead wire length 100mm. This can be made according to customer's application need.

  • Electrical Connection Options :

  • i) Electrical Lead Wires - length can be made according to customer's application needed.

  • ii) Electrical Lead Wires with Ring or Y Terminals

  • iii) Busbar Terminals

  • Not all resistors' power and sizes are listed. Contact us for more information.

  • Miniature size is available upon request.

  • There are more Brake Resistors photos.

  • Accept small, large quantity orders and Credit Cards

  • Prompt Delivery within 3 ~ 9 days

  • e-mail us for pricing.

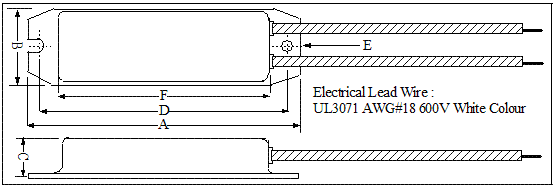

ASQ : 60W - 120W

Power Watt Dimensions in mm +/-1mm Resistance range ohm
A B C D E F
60W 100 30 13 90 4.5 75 0.01 - 100k
80W 130 42 19 116 5 103 0.01 - 100k
100W 130 42 19 116 5 103 0.01 - 100k
120W 182 42 19 172 6 152 0.01 - 100k

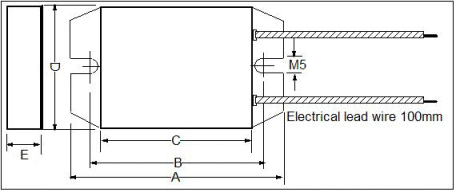

ASQM : 60W - 200W     Low Profile Metal Clad Resistors

The thickness can even as thin as 5mm. For more details, e-mail us.

Power Watt

Dimensions in mm +/-1mm

Resistance range ohm

A

B

C

D

E

60W

100 86 70 45 8

0.1 - 10k

80W

120 106 95 45 8

0.1 - 10k

100W

120 106 95 45 8

0.1 - 10k

120W

150 135 125 45 8

0.1 - 10k

150W 216 200 190 45 8 0.1 - 10k
200W 265 250 240 45 12 / 15 / 20 0.1 - 10k

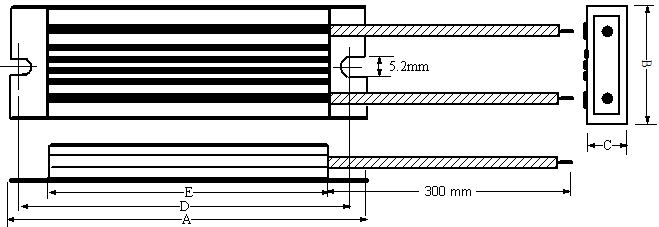

ASZ : 40W - 1kW

Power Watt Dimensions in mm +/-1mm Resistance range ohm
A +/-2 B +/-1 C +/-1 D +/-2 E +/-2
40 W 90 40 20 75 60 0.01 - 100k
60 W 100 / 115 40 20 100 85 0.01 - 100k
80 W 130 / 140 40 20 125 115 0.01 - 100k
100 W 140 40 20 125 115 0.01 - 100k
120 W 165 / 185 40 20 170 155 0.01 - 100k
150 W 185 40 20 170 155 0.01 - 100k
200 W 165 60 30 150 130 0.01 - 100k
250 W 165 60 30 150 130 0.01 - 100k
300 W 215 60 30 200 180 0.01 - 100k
400 W 245 / 265 60 30 250 230 0.01 - 100k
500 W 285 / 335 60 30 320 300 0.01 - 100k
600 W 300 / 335 60 30 320 300 0.01 - 100k
800 W 335 / 365 60 30 350 330 0.01 - 100k
1000 W 335 / 380 70 / 60 45 / 30 320 300 0.01 - 20k

Resistor sizes might be vary depend on resistance and load current.

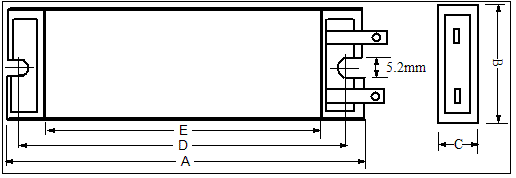

ASZ : 1kW - 15kW Power can be customized to 10kW.

Power Watt

Dimensions in mm

Resistance range ohm

A +/-2

B +/-1

C +/-1

D +/-2

E +/-2

1000 W

335 / 380

70 / 60

45 / 30

320

300

0.01 - 20k

1200 W

350 / 400

107 / 70

50 / 45

385

365

0.01 - 20k

1500 W

350 / 450

107 / 70

50 / 45

335 / 435

315 / 415

0.01 - 20k

2k W

400 / 500

107 / 70

50 / 45

385 / 485

365 / 465

0.01 - 20k

2500 W

450 / 550

107 / 70

50 / 45

435 / 535

415 / 515

0.01 - 20k

3k W

450 / 600

107 / 70

50 / 45

435 / 585

415 / 565

0.01 - 20k

4k W

500 / 525 / 550

128 / 129 / 107

41 / 41 / 50

-

-

0.01 - 10k

5k W

550

175 / 107

65 / 50

-

-

Customize

8k W

850

107

50

-

-

Customize

15k W

650

175

65

-

-

Customize

Resistor sizes might be vary depend on resistance and load current.

Other Resistor Power, resistor size and resistance value combination is available.

Please contact us for details.
