Silicon Coated Power Wire Wound Resistors -

DDR, DNR and DSR series (support Vitreous Enamel coating DDVR)


  • DDR - Wire Wound Resistors : 15W - 20000W ( 20kW )
  • DNR - Low Inductance Wire Wound Resistors : 15W - 20,000W ( 20kW )
  • DDVR - Vitreous Vitreous Enamel Wire Wound Resistors : up to 1kW
  • good for Continuous Load and Short Time over Load application
  • can be customized as High Current Resistors to handle very High Loading Current, up to hundreds Amperes, for even higher current requirement, please consider our High Current Load Banks and Shunt Resistors series
  • can be used to build Resistor Load Bank
  • resistance is made according to customer's application need

  • support multi-resistances per resistor requirement ( Multi-Terminals )

  • support very small ( milli ohm ) and high resistance range

  • support Vitreous Enamel coating for harsh conditions requirement

  • for very small resistance requirement, please tell working Voltage and loading time. Different Voltage can cause different resistor current. In turn different raw materials and production process are needed to withstand the load current and heat.

  • Precision Resistance Tolerance +/-0.1% +/-0.5% +/-1% +/-5% +/-10% +/-20%

  • For power larger than 20kW, we suggest using Resistance Box and Load Bank
  • support Power, Resistance and Resistor Size not listed below.

  • Adjustable Power Resistors - DSR-F, DSR-W, DSR-WB and DSR-H series

  • DSR-F : Power up to 20kW. Low cost and 2-9 days delivery lead time.

  • DSR-W : Power up to 8kW. Resistance is adjusted by hand wheel. 1-3 weeks delivery lead time.

  • DSR-WB : Adjustable Load Box with Hand Wheel with Voltmeter, Ammeter, Watt meter, Thermal Protection, Over Current Protection, Main Power Switch and Cooling System. Rated Power can up to 20kW.

  • DSR-H : Power up to 5kW. Resistance is adjusted by a hand holder. 1-3 weeks delivery lead time.

  • Resistance is made according to customer's application need.

  • for rotary adjustable power resistor, please refer to Rheostat series

  • for adjustable Power Resistor application note, please refer to the Application page.

  • There are more Power Resistors, Adjustable Power Resistors and Rheostats photos.

  • Accept both large and small quantity orders and credit cards.

  • Prompt Delivery, within 2 - 9 days! e-mail us for pricing.

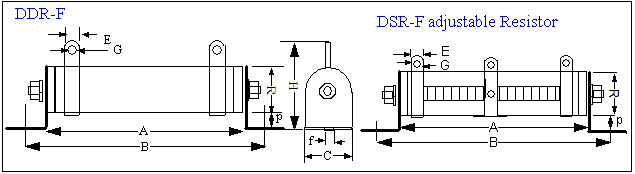

DDR-F / DSR-F – Power Wire Wound Resistors

Dimension in mm R A B C H p E G f
Tol. +/-mm 1 5 5 1 3 3 1 1 1
15W 15 45 66 15 40 13 6 3.5 4.5
20W 15 50 71 15 40 13 6 3.5 4.5
25W 20 50 80 20 50 15 6 3.5 5
30W 20 70 100 20 50 15 6 3.5 5
40W 20 87 115 20 50 15 6 3.5 5
50W 28 90 122 28 68 20 9 4.5 6
80W 28 90 122 28 68 20 9 4.5 6
100W 28 170 202 28 68 20 9 4.5 6
150W 28 215 247 28 68 20 9 4.5 6
200W 28 267 299 28 68 20 9 4.5 6
250W 28 267 299 28 68 20 9 4.5 6
300W 40 267 305 40 90 20 10 4.5 6
400W 40 330 367 40 90 20 10 4.5 6
500W 50 330 370 50 98 20 10 6 8
600W 50 / 60 330 370 50 98 20 10 6 8
700W 50 400 440 50 98 20 10 6 8
800W 70 300 331 70 135 30 15 8 8
1kW 70 300 331 70 135 30 15 8 8
1500W 70 415 446 70 135 30 15 8 8
2kW 70 510 541 70 135 30 15 8 8
2500W 70 600 631 70 135 30 15 8 8
3kW 70 600 631 70 135 30 15 8 8
4kW 100 430 468 100 185 35 15 8 8
5kW 100 500 538 100 185 35 15 8 8
6kW 100 600 638 100 185 35 15 8 8
10kW 150 600 640 152 260 43 30 8 10
12kW 150 660 700 152 260 43 30 8 10
15kW 150 660 / 750 700 / 850 152 260 43 30 8 10
20kW 150 1000 1040 152 260 43 30 8 10

Resistor sizes might be vary depend on resistance and load current.

For Vitreous Enamel coating DDVR series, power up to 1kW.

DNR–F – Low Inductance Power Wire Wound Resistors

Dimension in mm R A B C H p E G f
Tol. +/-mm 1 5 5 1 3 3 1 1 1
15W 15 45 66 15 40 13 6 3.5 4.5
20W 15 50 71 15 40 13 6 3.5 4.5
25W 20 50 80 20 50 15 6 3.5 5
30W 20 70 100 20 50 15 6 3.5 5
40W 20 87 115 20 50 15 6 3.5 5
50W 28 90 122 28 68 20 9 4.5 6
80W 28 90 122 28 68 20 9 4.5 6
100W 28 170 202 28 68 20 9 4.5 6
150W 28 215 247 28 68 20 9 4.5 6
200W 28 267 299 28 68 20 9 4.5 6
250W 28 267 299 28 68 20 9 4.5 6
300W 40 267 305 40 90 20 10 4.5 6
400W 40 330 367 40 90 20 10 4.5 6
500W 50 330 370 50 98 20 10 6 8
600W 50 / 60 330 370 50 98 20 10 6 8
700W 50 400 440 50 98 20 10 6 8
800W 70 300 331 70 135 30 15 8 8
1kW 70 300 331 70 135 30 15 8 8
1500W 70 415 446 70 135 30 15 8 8
2kW 70 510 541 70 135 30 15 8 8
2500W 70 600 631 70 135 30 15 8 8
3kW 70 600 631 70 135 30 15 8 8
4kW 100 430 468 100 185 35 15 8 8
5kW 100 500 538 100 185 35 15 8 8
6kW 100 600 638 100 185 35 15 8 8
10kW 150 600 640 152 260 43 30 8 10
12kW 150 660 700 152 260 43 30 8 10
15kW 150 660 / 750 700 / 850 152 260 43 30 8 10
20kW 150 1000 1040 152 260 43 30 8 10

Resistor sizes might be vary depend on resistance and load current.
