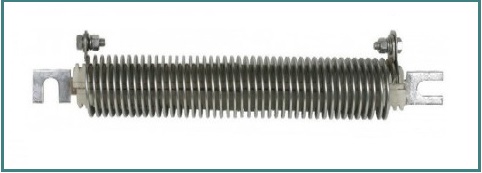

Edge Wound Power Resistors EWR

  • Applications :

  • Excellent in Thermal Energy Dissipation, Medium Current and Continuous Load Duty applications

  • Variable Frequency Drive, Frequency Converter Drives, Server, Motion Control

  • High Pulse Energy absorption
  • Overhead Crane, hoist forklifts, Electric Lift Trucks
  • Mine locomotive

  • Neutral Grounding of Transformers and generators

  • Elevator control

  • Continuous High Current duty applications

  • Pulse Current / Energy dissipation

  • Dynamic Braking

  • Discharge Resistor

  • Heating Resistor in oven

  • Characteristics :

  • This series Edge Wound Power Resistor has fins like high quality Resistive Alloy resistive element and winds around the ceramic substrate.

  • The design increases the overall surface area, which is good for thermal energy dissipation and increase resistor reliability.

  • Power range : 500W to 3000W

  • Withstand Severe short-time overload : 10 x rated Wattage 5 seconds

  • Support low resistance and high current requirement

  • Support multi-Resistances per resistor

  • Support adjustable resistance requirement with an adjustable ring Terminal

  • Support Screw Bolt Terminals and Quick Fit Tab Terminal

  • Support Mounting Fixture and Enclosure requirement

  • Resistor size might be changed according to different resistance value and load current requirement

  • We support Edge Wound Power Resistors for wide variety of industrial applications.
    Different applications can have very different capacitor electrical and mechanical profile requirements.

  • Accept small, large quantity orders and PayPal

  • Prompt Delivery within 7 ~ 14 days

  • e-mail us for pricing.
