Vitreous Enamel Resistors -

DVR and DVSR series


  • DVR - Vitreous Enamel Resistors : 8W - 500W
  • DVSR - Adjustable Vitreous Enamel Resistors : 8W - 500W
  • DDVR - Wire Wound Power Resistor : up to 1000W  - refer to DDR-F series
  • DQVR - Waved Ribbon Power Resistor : up to 1000W  - refer to DQR-F series
  • support some other power Wattage
  • This series of resistors are made for harsh working conditions - humidity, higher temperature and vibration
  • low inductance version is available : DVRN / DVRN-F
  • multi tab Terminals / multi Resistance in a resistor is also available
  • with hardware mounting fixture : add -F at the part number end
  • wattage, resistance and resistor size not listed below, can be customized
  • even support small quantity order and accept Credit Card
  • Prompt Delivery, within 1 - 2 weeks! e-mail us for pricing.

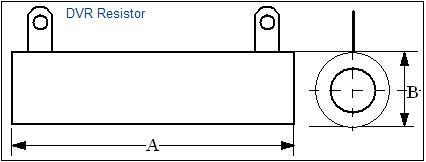

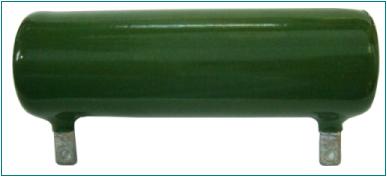

DVR - Vitreous Enamel Wire Wound Power Resistors

Rated Power Dimensions in mm Resistance Range in ohm
Length A Diameter B DVR adjustable - DVSR
8W 35 +/- 1.5 14 +/- 2 5.1 ~ 3.3k -
10W 41 +/- 1.5 14 +/- 2 5.1 ~ 3.3k 5.1 ~ 200
16W 51 +/- 2 17 +/- 2 5.1 ~ 3.3k 5.1 ~ 220
20W 51 +/- 2 17 +/- 2 5.1 ~ 4k 5.1 ~ 430
25W 51 +/- 2 21 +/- 2.5 10 ~ 4k 10 ~ 510
30W 71 +/- 2.5 21 +/- 2.5 10 ~ 5k 10 ~ 1k
40W 87 +/- 2.5 21 +/- 2.5 20 ~ 7.5k 20 ~ 1.2k
50W 91 +/- 2.5 29 +/- 3 20 ~ 10k 20 ~ 1.5k
80W 140 +/- 3.5 29 +/- 3 24 ~ 12k 24 ~ 2k
100W 170 +/- 3.5 29 +/- 3 24 ~ 15k 24 ~ 2.7k
150W 215 +/- 4 29 +/- 3 20 ~ 30k 20 ~ 4.3k
200W 215 +/- 4 38 +/- 3 4.7 ~ 12k 5.1 ~ 3k
300W 266 +/- 4 36 +/- 2 4.7 ~ 12k 5.1 ~ 3k
400W 250 +/- 4 54 +/- 2 5.1 ~ 10k 6.2 ~ 3k
500W 300 +/- 4 54 +/- 2 5.1 ~ 10k 6.2 ~ 3k
